Introduction

Another update to the Windows 10 Toast Notification Script is a reality. Now being on version 1.6.

The feedback and questions related to the Windows 10 Toast Notification Script keeps coming and that’s amazing!

In my last post and update of the script, I added the option to natively and with help of a custom protocol in Windows, to run task sequences directly from the action button.

Since then, I was asked if the script is able to launch application directly from the action button as well, and sure thing. I just added that capability to the script and the details are explained below.

What’s New

  •   1.6 – Added new option to run applications (ApplicationID) directly from the toast notification action button. Enable the option <RunApplicationID> in the config.xml
    • Created Display-ToastNotification function
      • Displaying the toast notification as been trimmed and merged into its own function
    • Created Test-NTSystem function
      • Testing if the script is being run as SYSTEM. This is not supported and will prevent the toast notification from being displayed
    • Converted all Get-WMIObject to Get-CimInstance
      • Get-WMIObject has been deprecated and is replaced with Get-CimInstance

Config.xml

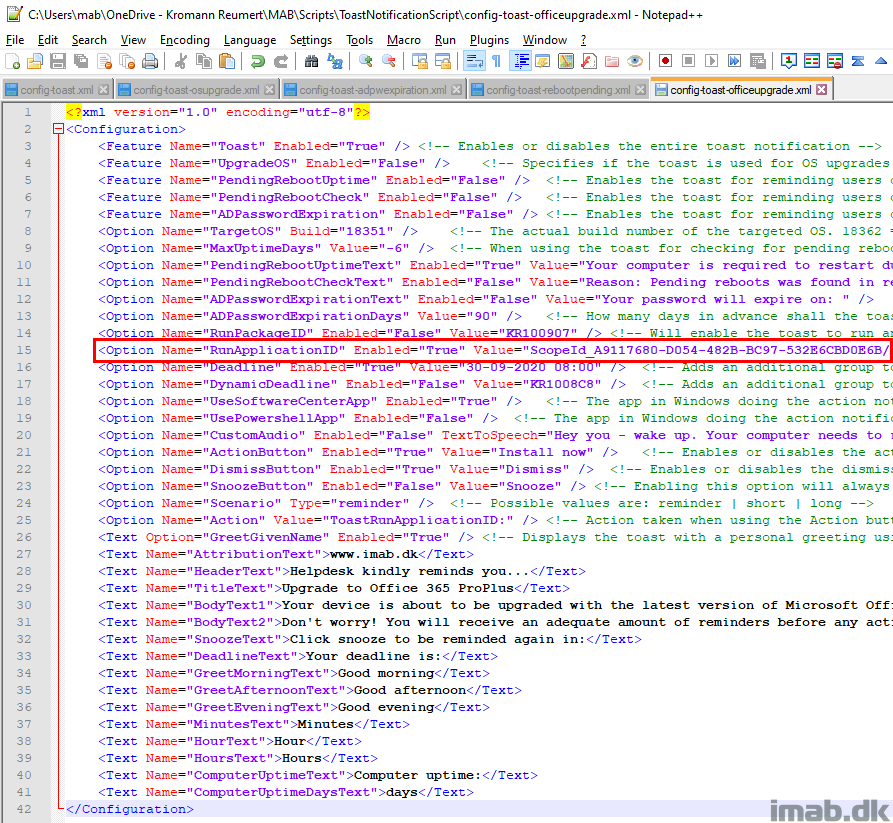

The new option, which enables you to run applications directly from the Install/Action button, is highlighted below.

To enable the option, simply configure RunApplicationID to Enabled=”True” and specify the Application ID of the application in the Value field: Value=”ScopeId_A9117680-D054-482B-BC97-532E6CBD0E6B/Application_fd55f35c-4e34-4490-a3ec-ee0b79233ec6″

For your convenience, I have included a new example of the config.xml in the download: config-toast-officeupgrade.xml

Application ID

The ID of an application can be found using Powershell or by browsing the Software Center (and probably with other means too). Both of the options requires that the application in question is deployed to the device.

Powershell

Run below line of Powershell, inserting the name of the application.

Get-CimInstance -ClassName CCM_Application -Namespace "root\ccm\clientSDK" | Where-Object {$_.Name -eq "Your Application"} | Select-Object Id

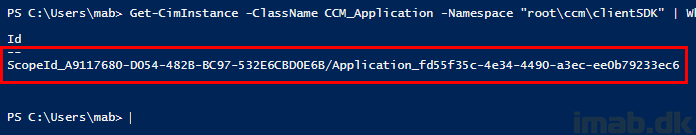

The output will be similar to below illustration:

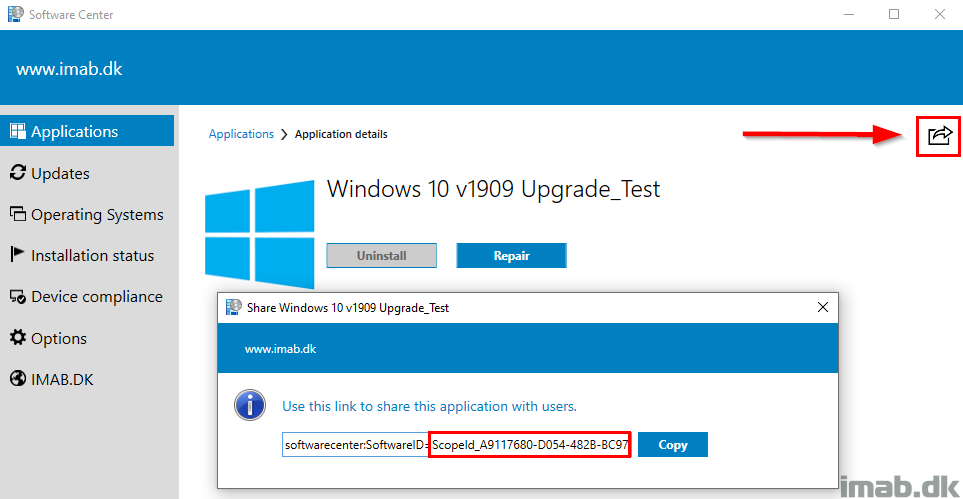

Software Center

The ID of the application can also be found via Software Center by browsing the application in question and using the Share button, also as illustrated below.

Note that it’s only the part after the “=” sign which is needed. Not the entire link.

How does it work?

In order for this to work, you need to create a custom protocol in Windows 10. The easiest approach is to install this through the .MSI I provide in the download:

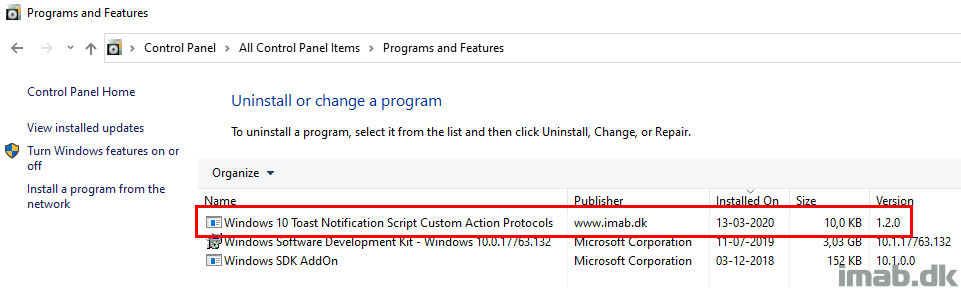

Windows 10 Toast Notification Script Custom Action Protocols.msi

  • Note: This is now coming in a version 1.2.0. If you installed my previous version, you should be able to simply upgrade the installation to include the new files.

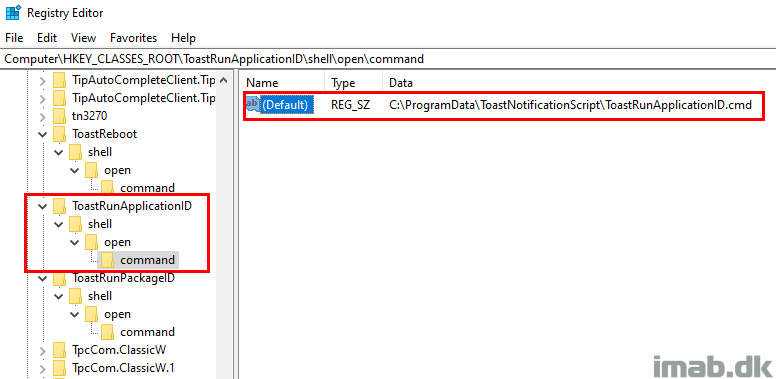

ToastRunApplicationID Protocol

The installation currently comes with three custom protocols. The one of interest in this example, is the one called ToastRunApplicationID. The installer creates below registry entries, which creates the custom protocol:

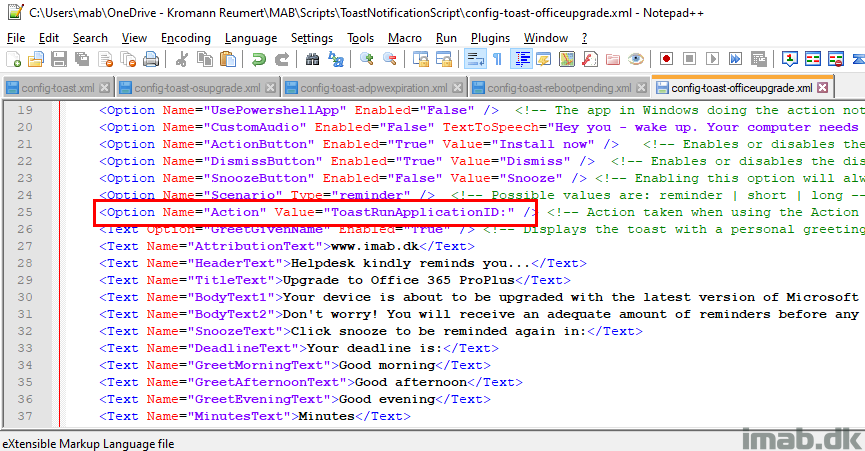

This enables us to use ToastRunApplicationID: as an action in the config.xml, which in return launches the referenced ToastRunApplicationID.cmd.

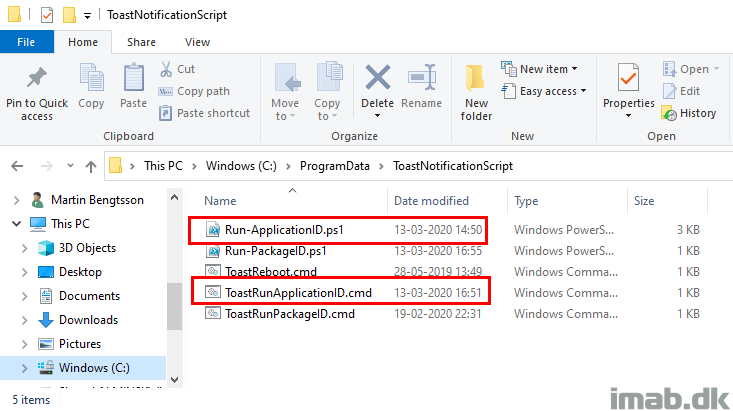

Local Files

The installation also drops some local files into ProgramData\ToastNotificationScript. The current content is illustrated below and currently consists of 5 files:

  • Run-PackageID.ps1 (not used in this example)
  • ToastReboot.cmd (not used in this example)
  • ToastRunPackageID.cmd (not used in this example)
  • Run-ApplicationID.ps1
  • ToastRunApplicationID.cmd

Run-ApplicationID.ps1

This is the new script doing the magic in this scenario. The script is included in the download, and is being installed onto the device with the installation of Windows 10 Toast Notification Script Custom Action Protocols.msi.

The script is somewhat self explanatory, and is triggering the installation of the application via WMI.

<#
.SYNOPSIS
    Script used to execute applications directly from my Windows 10 Toast Notification Script

.NOTES
    Filename: Run-ApplicationID.ps1
    Version: 1.0
    Author: Martin Bengtsson
    Blog: www.imab.dk
    Twitter: @mwbengtsson

.LINK

Windows 10 Toast Notification Script

#>

# Function for triggering the installation or repairing of applications
# Parts of this function is heavily inspired by Timmy's post at: https://timmyit.com/2016/08/08/sccm-and-powershell-force-installuninstall-of-available-software-in-software-center-through-cimwmi-on-a-remote-client/
# Function is modified to cater for a scenario where the application needs repairing instead of installing
# Also removed bits and pieces which I don't need :-)
function Trigger-AppInstallation() {
    param(
        [String][Parameter(Mandatory=$true)] $appID
    )

    Begin {
        $application = (Get-CimInstance -ClassName CCM_Application -Namespace "root\ccm\clientSDK" | Where-Object {$_.Id -eq $appID})
        $args = @{EnforcePreference = [UINT32] 0
        Id = "$($application.Id)"
        IsMachineTarget = $application.IsMachineTarget
        IsRebootIfNeeded = $false
        Priority = 'High'
        Revision = "$($application.Revision)"}
     }

    Process {
        if ($application.InstallState -eq "NotInstalled") {
            try {
                Invoke-CimMethod -Namespace "root\ccm\clientSDK" -ClassName CCM_Application -MethodName Install -Arguments $args
            }
            catch { }
        }
        elseif ($application.InstallState -eq "Installed") {
            try {
                Invoke-CimMethod -Namespace "root\ccm\clientSDK" -ClassName CCM_Application -MethodName Repair -Arguments $args
            }
            catch { }
        }
    }

    End { }
}
$registryPath = "HKCU:\SOFTWARE\ToastNotificationScript"
$applicationID = (Get-ItemProperty -Path $RegistryPath -Name "RunApplicationID").RunApplicationID
Trigger-AppInstallation -appID $applicationID

Process Explained

The process may seem complicated, but it’s not. I will try to explain the sequence of actions here:

  1. Toast Notification Script run and tattoos the registry with the ID of the application into HKCU:\SOFTWARE\ToastNotificationScript
  2. When clicking the action/install button of the toast notification, the protocol ToastRunApplicationID: is being initiated
  3. This launches the ToastRunApplicationID.cmd, which again launches the final Powershell script: Run-ApplicationID.ps1
  4. Run-ApplicationID.ps1 dynamically picks up the ApplicationID from the registry and runs the corresponding application directly on the device
    • This makes sure you never have to edit any of the local files. Only the config.xml will ever need editing

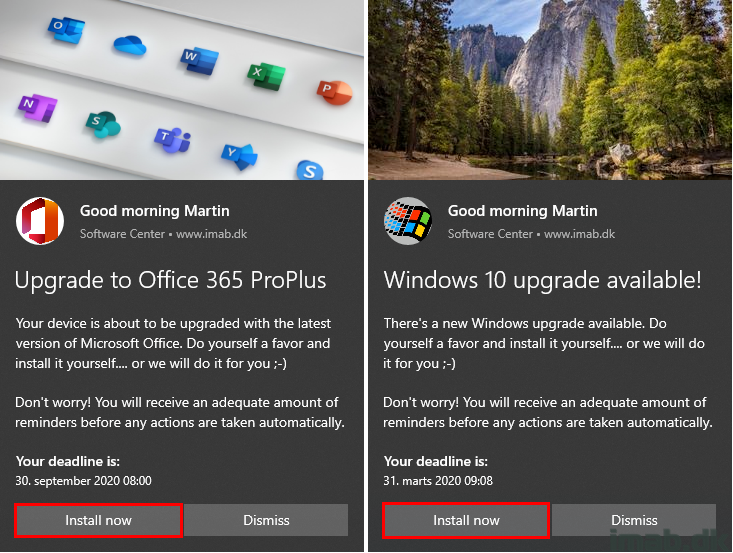

Use Case Inspiration

OS Upgrade with Powershell App Deployment Toolkit

So, to keep it short. What I’m doing here, is to have the Install now button directly launching an application based on PSADT. The application based on PSADT, is in return launching the In-Place Upgrade Task Sequence.

The sequence is as following:

  1. Toast Notification pops up
  2. Install now button is launching the application based on PSADT
  3. PSADT is then launching the actual In-Place Upgrade Task Sequence
    1. This via the awesome customization that PSADT provides

If anything needs further explaining, don’t hesitate to reach out to me on Twitter or in the comments section down below.

Download

>> https://github.com/imabdk/Toast-Notification-Script <<
