Introduction

Installing the OneDrive for Business client on a per machine basis is an often requested feature and for good reasons. OneDrive in it’s current state in the production ring, is installing into the users profile in %localappdata%, and for equally good reasons that is often not desired by enterprises.

Now, Microsoft has finally given us an option, allowing us to install OneDrive for the device into %programfiles(x86)%. The option is currently in preview and all the juicy details are found here: https://docs.microsoft.com/en-us/onedrive/per-machine-installation

PS. Credit where due: I was inspired by Per Larsen’s post on doing the same with Microsoft Intune and like many times before, this brought me to doing something on my own for the sharing and learning experience. Enjoy. 🙂

Powershell

The magic lies in the Powershell script found in the very end of the post.

The script basically comes with 2 options: Install with or without source files using the parameter -NoSourceFiles or -SourceFiles

Needless to say, using the -NoSourceFiles parameter downloads the OneDriveSetup.exe directly from Microsoft and stores it into Windows\Temp from where it also is installed.

Before installation

This is the familiar scenario where OneDrive is installed in the users profile. This is how it looks prior to the installation in my end:

After installation

And below illustration is OneDrive after the installation. Notice the desired location in %programfiles(x86)%. Lovely!

Putting to use with ConfigMgr

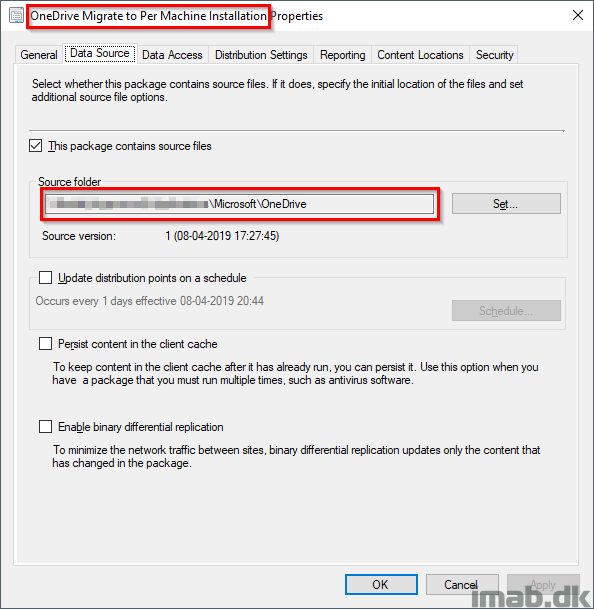

Using the script with ConfigMgr is straightforward. The easiest approach is obviously using a package with source files similar to below illustration:

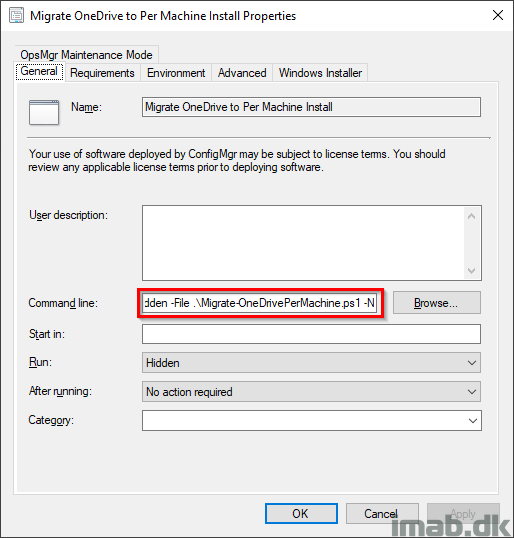

And with that package, create a program running the actual script:

powershell.exe -ExecutionPolicy Bypass -NoLogo -NonInteractive -NoProfile -WindowStyle Hidden -File .\Migrate-OneDrivePerMachine.ps1 -NoSourceFiles

The Actual Script

Copy below loveliness and save it as Migrate-OneDrivePerMachine.ps1

The script does following in headlines:

• If used with -NoSourceFiles parameter, the script downloads the OneDriveSetup.exe from Microsoft
  • Store the download into Windir\Temp
  • Runs the installation from Windir\Temp
  • Waits for the OneDriveSetup.exe process to complete
  • Configures OneDrive to insiders update ring (needed in order to receive future updates for per machine installation)
• If  used with -SourceFiles parameter, the script assumes local source files
  • That means that the OneDriveSetup.exe should be put next to the script in the same directory
  • And then the script does roughly the same

<#
.SYNOPSIS
    Install a fresh Per Machine installation of OneDrive or migrate a current installation.

.DESCRIPTION
    Install a fresh Per Machine installation of OneDrive or migrate a current installation.
    You have the option to download OneDrive in the minimum supported build directly from Microsoft or use local source files.
    The script also sets the update ring to Insiders. This is to ensure that future fixes for the Per Machine installation is applied.

.NOTES
    Filename: Migrate-OneDrivePerMachine.ps1
    Version: 1.1
    Author: Martin Bengtsson
    Blog: www.imab.dk
    Twitter: @mwbengtsson

#>

[CmdletBinding()]
param(
    [parameter(Mandatory=$false)]
    [ValidateNotNullOrEmpty()]
    [switch]$NoSourceFiles,

    [parameter(Mandatory=$false)]
    [ValidateNotNullOrEmpty()]
    [switch]$SourceFiles
)

# Parameters for the OneDrive installation
$InstallParams = "/allusers /quiet"
# Path for OneDrive.exe post installation
$InstalledPath = "${env:ProgramFiles(x86)}\Microsoft OneDrive\OneDrive.exe"

if ($PSBoundParameters["NoSourceFiles"]) {
    Write-Output "No Source Files parameter selected"
    # Official download URL to the minimum supported OneDrive build (19.043.0304.0003)
    $DownloadURL = "https://go.microsoft.com/fwlink/?linkid=2083517"
    # Save the OneDriveSetup.exe into C:\Windows\Temp
    $OneDriveSetup = "$ENV:windir\Temp\OneDriveSetup.exe"

    # Try downloading the OneDriveSetup.exe file
    try {
        Write-Output "Downloading OneDriveSetup.exe and saving it to $OneDriveSetup"
        Invoke-WebRequest -Uri $DownloadURL -OutFile $OneDriveSetup
    }

    catch {
        Write-Output "Error in downloading OneDriveSetup.exe" ; break
    }

    # Continue if the OneDriveSetup.exe file was downloaded
    if (Test-Path -Path $OneDriveSetup) {

        if (-NOT(Test-Path -Path $InstalledPath)) {
            Write-Output "OneDrive is not installed already. Installing OneDrive from $OneDriveSetup"
            try {
                # Waiting for the process here seems to wait indefinitely (OneDriveSetup.exe seems to spawn several processes)
                $RunInstall = Start-Process -FilePath $OneDriveSetup -PassThru -ArgumentList $InstallParams
                $Running = $true
                    # Instead waiting for OneDriveSetup to complete with other means
                    do {
                        Write-Output "Installing OneDrive for Business. Hang on..."
	                    Start-Sleep -Seconds 10
                        if ((Get-Process "OneDriveSetup" -ErrorAction SilentlyContinue)) {
		                    $Running = $true
        		        }
                        else {
                           $Running = $false
                        }

                    } while ($Running -eq $true)
            }
            catch {
                Write-Output "Error installing OneDrive" ; break
            }
        }
        else {
            Write-Output "OneDrive seems to be installed already"
        }
    }
    else {
        Write-Output "Something is not right. OneDriveSetup.exe was not located on $OneDriveSetup" ; break
    }
}

if ($PSBoundParameters["SourceFiles"]) {
    Write-Output "Source Files parameter selected. Assuming OneDriveSetup exists locally"
    $runningDir = Split-Path -Parent $MyInvocation.MyCommand.Definition
    $OneDriveSetup = "OneDriveSetup.exe"
    if (-NOT(Test-Path -Path $InstalledPath)) {
        try {
            # Waiting for the process here seems to wait indefinitely (OneDriveSetup.exe seems to spawn several processes)
            $RunInstall = Start-Process -FilePath $runningDir\$OneDriveSetup -PassThru -ArgumentList $InstallParams
            $Running = $true
            # Instead waiting for OneDriveSetup to complete with other means
            do {
                Write-Output "Installing OneDrive for Business using local source files. Hang on..."
	            Start-Sleep -Seconds 10
                if ((Get-Process "OneDriveSetup" -ErrorAction SilentlyContinue)) {
		            $Running = $true
                }
                else {
                    $Running = $false
                }

            } while ($Running -eq $true)
        }
        catch {
            Write-Output "Error installing OneDrive using local source files. Please check if OneDriveSetup.exe exists in the source file folder" ; break

        }
    }
    else {
        Write-Output "OneDrive seems to be installed already"
    }
}

# Do following if OneDrive is found on the new location
if (Test-Path -Path $InstalledPath) {
    Write-Output "OneDrive is installed locally in $InstalledPath"
    Write-Output "Configuring OneDrive update ring to Insiders through local registry settings"
    $RegistryPath = "HKLM:\SOFTWARE\Policies\Microsoft\OneDrive"
    $Policy = "GPOSetUpdateRing"
    # Create a local policy configuring OneDrive update ring to Insiders. This is currently recommended in order to receive additional fixes
    try {
        New-ItemProperty -Path $RegistryPath -Name $Policy -Value 4 -PropertyType "DWORD" -Force | Out-Null
    }

    catch {
        Write-Output "Failed to make local changes to registry"
    }

}
else {
    Write-Output "Something is not right - OneDrive was not found in $InstalledPath"

}

ENJOY 🙂
