Introduction

Last week I blogged about how to get properly started with Windows AutoPilot. This week I’m continuing on the topic, and going into details on how you can deploy the SCCM (System Center Configuration Manager) client as a part of the Windows AutoPilot enrollment and thus achieve Co-management with SCCM and Microsoft Intune.

I have previously blogged a lot about Co-management. Focus here has been enrolling devices already managed by SCCM into Intune MDM.

This post is the opposite. This time we are deploying a device through Windows AutoPilot, enrolling it into Microsoft Intune and then deploying the SCCM client through the Cloud Management Gateway. Sounds interesting? Read on 🙂

Find all my Co-management posts here: https://www.imab.dk/category/co-mgmt/
- My post about setting up the Cloud Management Gateway without PKI certificates is especially of interest if pursuing Co-management

Installing the SCCM Client

Today and at the time of writing, we have two methods in Microsoft Intune that enables us to deploy the SCCM client. We have the ability to use the new Win32 app deployment capability as well as create a SCCM client boot strap using a line of business app. In this post I will walk through my preferred option and ultimately explain why this is my preferred option.

Win32 App Deployment

In order for you to deploy Win32 apps using Microsoft Intune, you will need to download the Intune App32 Packaging Tool: https://github.com/Microsoft/Intune-Win32-App-Packaging-Tool
Copy down the SCCM client locally (the entire folder from the SCCM site server: \\YourSiteServer\SMS_SiteCode\Client)
- In my example, I copied the Client folder down locally to C:\Temp

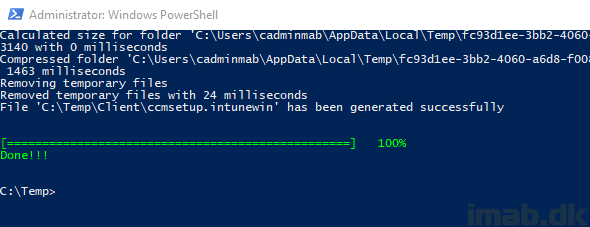

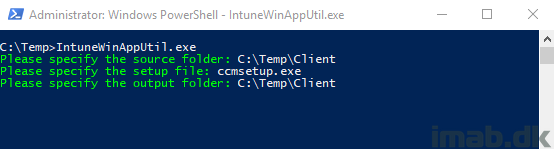

Run the App32 Packaging Tool. See below two illustration of the exact process:

Take notice of the newly created file ccmsetup.intunewin
Open up your favorite browser and head into the Microsoft 365 Device Management portal: https://devicemanagement.microsoft.com/

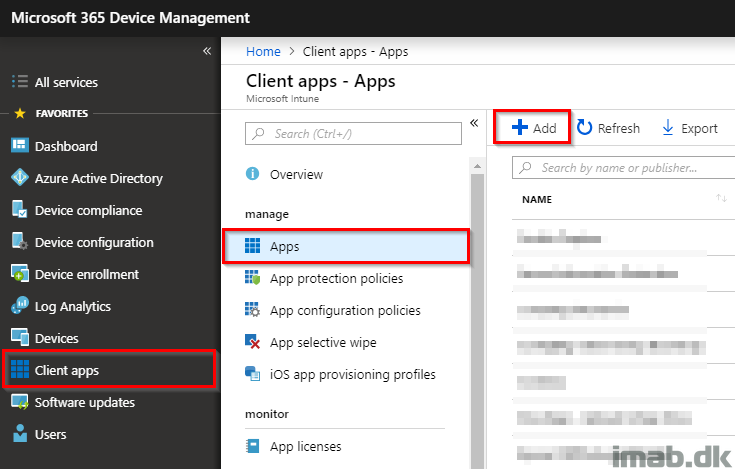

Browse your way into Client apps -> Apps and Click Add

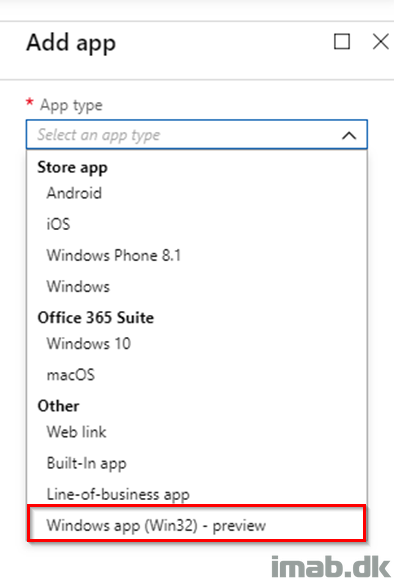

Select Windows app (Win32) – preview from the drop down menu

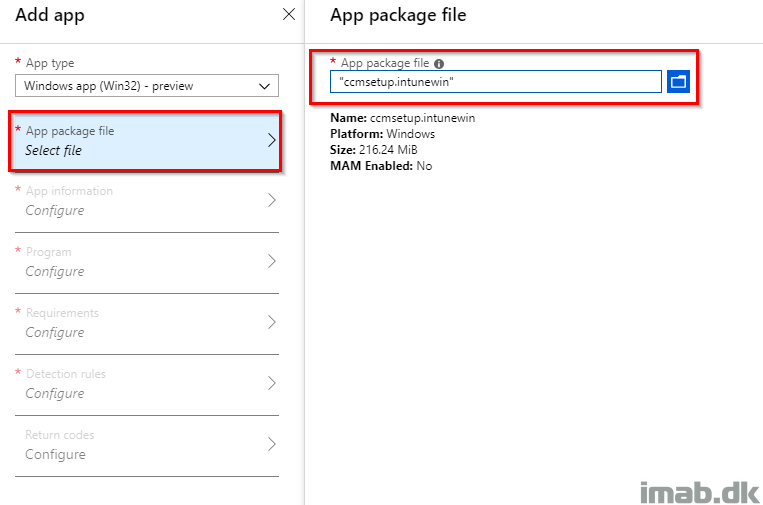

Browse to the ccmsetup.intunewin created by the packaging tool earlier. See below.

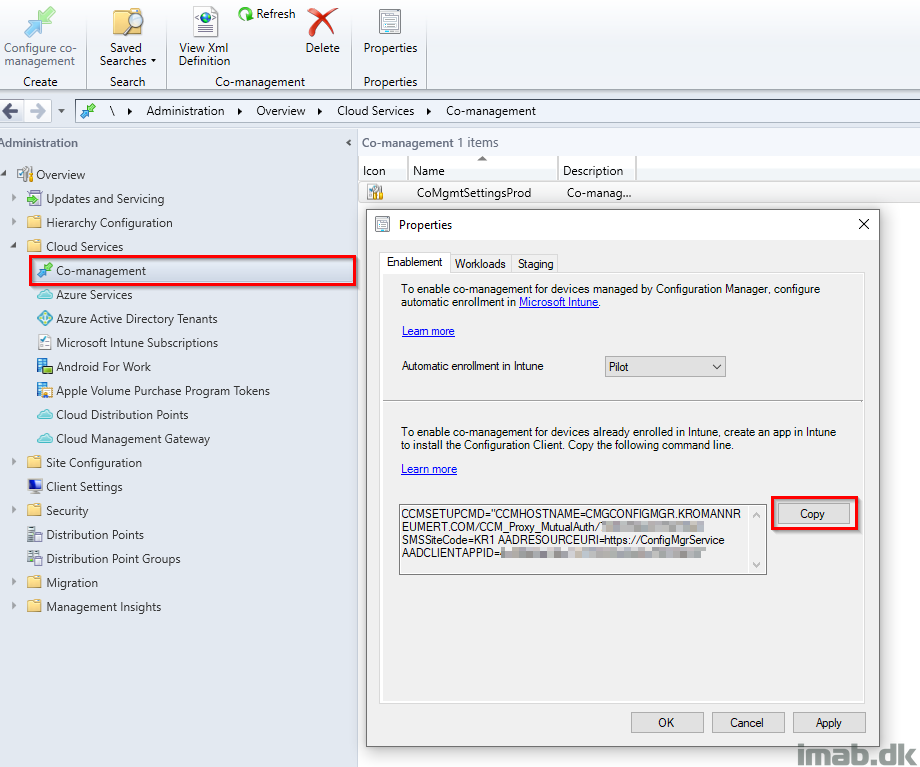

Next, a quick peak into the SCCM console, where you will find the install command needed in the following step. In the Administration work space-> in the Cloud Services node and Co-management menu. Copy out the command line

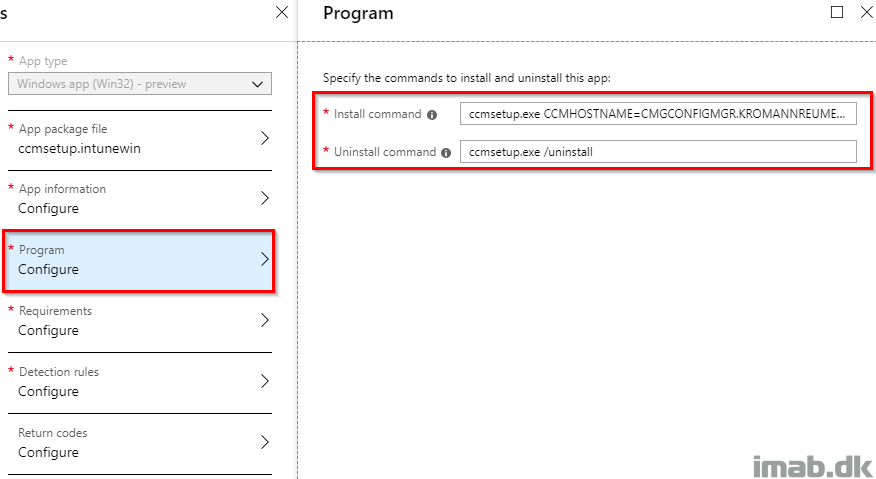

On the Program blade, fill out the Install command and Uninstall command
Install command will be ccmsetup.exe followed by your command line from the Cloud Management Gateway (without CCMSETUPCMD=)
Uninstall command: ccmsetup.exe /uninstall

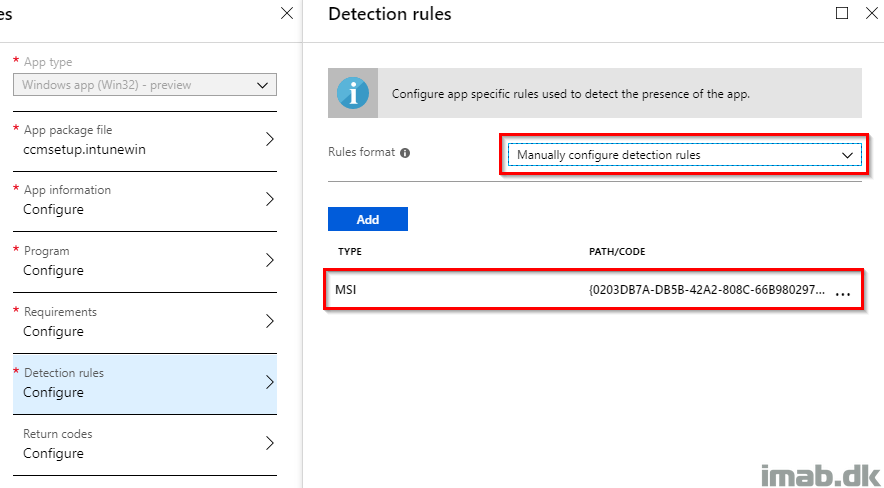

Configure the Detection rule. I went with the MSI product code for the SCCM client. Use whatever suit your needs.
- You can use something like this to find the product code of a given MSI: http://www.scconfigmgr.com/2014/08/22/how-to-get-msi-file-information-with-powershell/

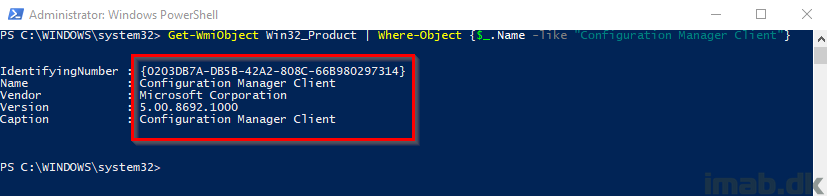

- Or run following Powershell on a device where the SCCM client is installed already: Get-WmiObject Win32_Product | Where-Object {$_.Name -eq “Configuration Manager Client”}

Assignment

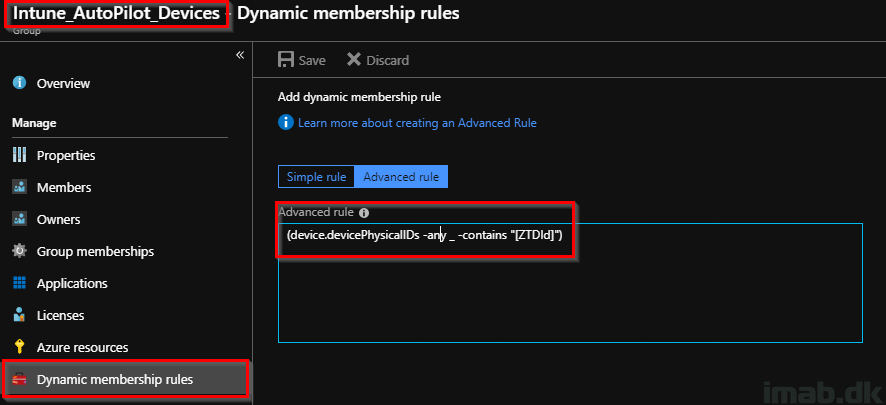

For this scenario, I have a Dynamic group in Azure consisting of all my Windows AutoPilot devices. You can create similar group with following dynamic membership rule: (device.devicePhysicalIDs -any _ -contains “[ZTDId]”)

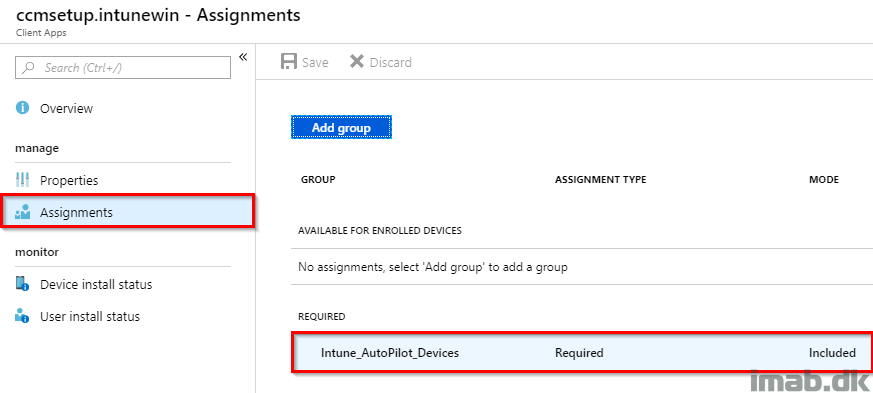

Assign it to the group. I’m going with a Required assignment, which will result in an automatic installation on all Windows AutoPilot devices

Final notes

To sum up: The order in how to eventually reach Co-management through Windows AutoPilot is essentially this: Windows AutoPilot -> Azure AD Join -> Intune MDM Enrollment -> SCCM Client installation from the Cloud Management Gateway.

Now, when having the Cloud Management Gateway (CMG) configured without PKI, the trust and authentication happens through Azure. This essentially means that assigning the SCCM client to the device and thus allow the SCCM client to potentially install before the user has logged on, might result in an initial failure. This happens because a part of the authentication lies in the logged on user being an Azure identity. To completely avoid this, the SCCM client installation can be assigned to the user instead.

The alternative to using the new preview feature Win32 application deployment, is to use ConfigMgr Client Setup Bootstrap as a line of business (LOB) app. If you choose to use a LOB, do note that the Enrollment Status Page might keep the user at the AutoPilot deployment screen, while the SCCM client tries to be installed in the background. For reasons mentioned above, this is not desirable in this scenario.

Enjoy 🙂
