Introduction

I know. There are tons of similar post explaining how to upgrade Configuration Manager Current Branch to the latest version, but that’s not a valid reason not to do another one (:D). Also, mine is exactly how I did it in our production environment, from beginning till end, and not in a lab where you usually (I do) almost blindfolded click next and accept everything, without any precautions.

This is a stand-alone primary site in an enterprise environment of a midsize company in Denmark, running on Windows Server 2016 (I most recently did an in place upgrade of the OS from 2012. Another blog post incoming soon), and for your inspiration, this is the exact steps I went through. Curious? Read on 🙂

Read more…

Introduction

Unless you have been hiding under a rock since Christmas, you should have heard about the new CPU vulnerability found in Intel and AMD chips: https://portal.msrc.microsoft.com/en-US/security-guidance/advisory/ADV180002

Long story short, following this vulnerability Microsoft instantly made changes to their OS, requiring all AV (Antivirus) products to be compatible with these new changes.

Everything in details in this link: https://support.microsoft.com/da-dk/help/4072699

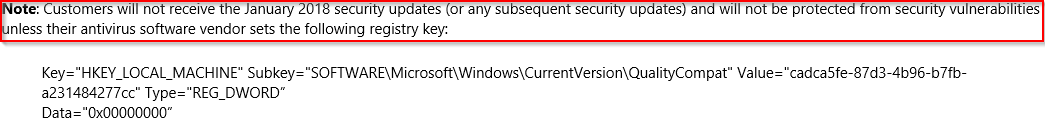

What the article also mentions is that any Windows OS won’t be offered the January Security Updates (and any subsequent) until a very specific registry key is present on the systems. This is seen, when computers in your environment doesn’t request the update when you expect it to, and when compliance reports in ConfigMgr tells you that the update show up as Not Required when you know it is.

Most AV products by this time do create the registry key already, but what if you do not use any AV (for whatever reason that may be), and what if you want to make sure the registry key is there already and always is. Use Compliance Settings in ConfigMgr. Usually for on-prem domain joined computers, I would stick to Group Policies, but for this in particular, Compliance Settings in ConfigMgr does a way better job in regards to remediation and reporting of compliance.

Configuration

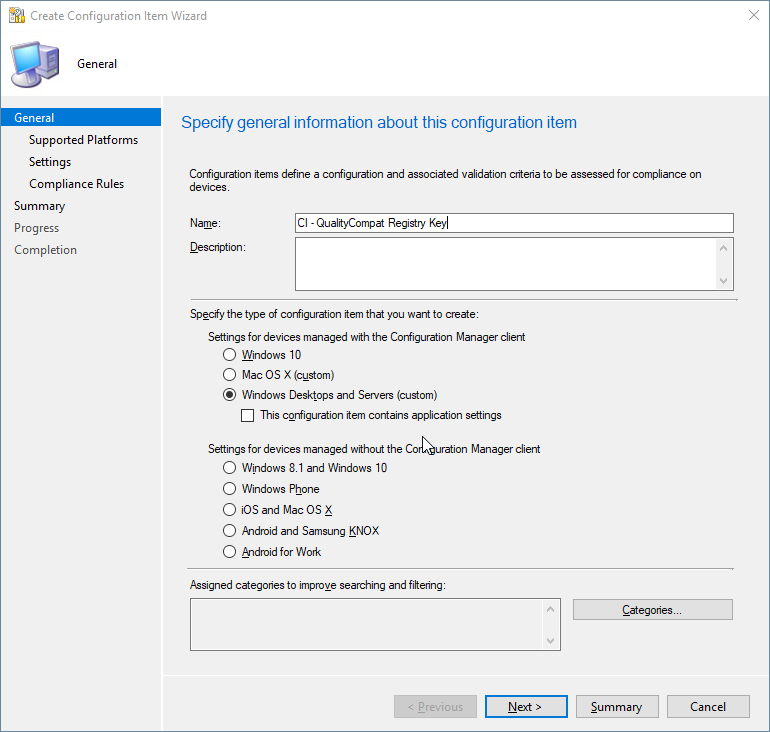

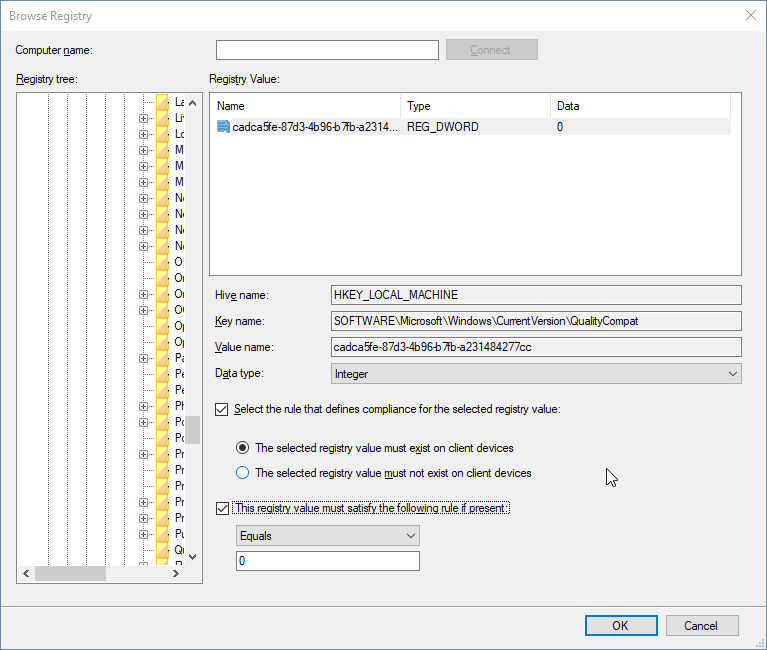

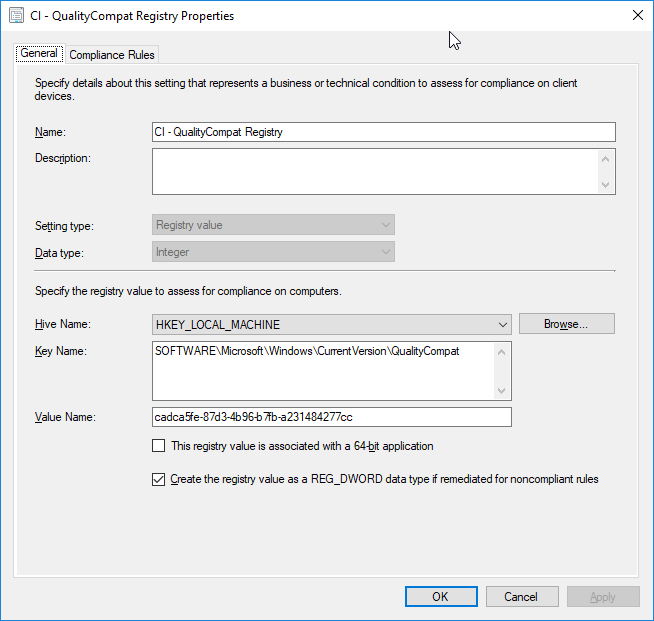

• Create a new Configuration Item in ConfigMgr following these snippets (Assets and Compliance tab)

• Add the newly created Configuration Item to Configuration Baseline, and deploy the baseline to selected collections.

Finally

Go to the Monitoring tab of the ConfigMgr console and expand Reporting -> Reports -> Compliance and Settings Management and find the report: Summary compliance by configuration baseline and lean back and watch how your clients are reporting back compliance. (Might take a while depending on your Client Policy Settings)



Introduction

First off, this is probably not for everyone. ConfigMgr and WSUS can deploy updates to the O365 ProPlus client just fine and most needs are probably satisfied this way. However, if you are interested in more visibility before, during and after deploying O365 updates to your users – read on!

After updating ConfigMgr to 1706 (from 1610 and 1702) something changed in the behavior of installing O365 ProPlus updates. Previously, in 1610 and 1702, the behavior was actually quite transparent for the end user: A restart flag is set and the update is installed after the computer restarts. This actually meant that you could deploy any update to o365 ProPlus and not worry about notifying your users about anything but the coming restart (which is somewhat similar to the behavior of standard software updates for Windows)

Coming ConfigMgr 1706, this changed dramatically to in-app notifications as well as forced shutdown of apps (and potential loss of unsaved work) if the right circumstances was in place. Also, when the apps are shut down, nothing is being displayed to notify the user about the progress, so most users will re-open the Office apps right away creating even more problems.

The Microsoft Docs article for the change in behavior is outlined right here: https://docs.microsoft.com/en-us/sccm/sum/deploy-use/manage-office-365-proplus-updates#restart-behavior-and-client-notifications-for-office-365-updates

I urge anyone managing O365 updates with ConfigMgr to give it a read and take notes of all the possible outcomes when deploying O365 updates this way. To quote the important ones (note all the maybe’s, which makes the experience really inconsistent):

• A pop-up notification might not display until the user clicks the icon in the notification area. In addition, if the notification area has minimal space, the notification icon might not be visible unless the user opens or expands the notification area
• If the deadline is in the past or configured to start as soon as possible, running Office apps might be forced to close without notifications (they do – yay)
• The in-app notification bar does not display on an Office app that is running before the update is downloaded. After the update is downloaded, the in-app notification displays only for newly opened apps (the yellow in-app bar is inconsistent. Sometimes it shows, sometimes it doesn’t. Reopening apps or not)

So, enough with the ranting. Above is the facts about the poor user experience when running ConfigMgr 1706. Below will be how I used something totally different to create visibility for our users.

Powershell App Deployment Toolkit!

We all know the infamous Powershell App Deployment Toolkit: http://psappdeploytoolkit.com/. (And if you don’t, that’s another day and another blog post 🙂

Below is exactly how (and along the lines, why) I chose to leverage the use of the Powershell Deployment Toolkit and the ODT to deploy O365 updates in my organization.

• Download the PS deployment toolkit: http://psappdeploytoolkit.com/
• Download the Office Deployment Tool (ODT): https://www.microsoft.com/en-us/download/details.aspx?id=49117

Configuration

Create the Office Deployment Tool .xml file (Update.xml)

The ODT relies on a .xml file. That is whether you want to update or downgrade your Office 365 ProPlus installation. In this scenario I want to update, and for this I can specify exactly what build I want to update to. If you don’t specify a version, you will be updated to the latest build in your channel. A lot of the content in the .xml is optional, and something you also can manage through ConfigMgr or GPOs.

This is exactly the .xml file I’m using to update my Monthly Channel (previously called Current Channel) clients to the latest build. I manage the channel through GPOs, which is why you don’t see the channel being set in my .xml.

<Configuration>
  <Add OfficeClientEdition="32" Version="16.0.8730.2127" OfficeMgmtCOM="True" >
    <Product ID="O365ProPlusRetail">
      <Language ID="en-us" />
      <ExcludeApp ID="Groove" />
      <ExcludeApp ID="InfoPath" />
      <ExcludeApp ID="Publisher" />
      <ExcludeApp ID="SharePointDesigner" />
    </Product>
  </Add>
  <Logging Level="Standard" Path="C:\Windows\Temp" />
  <Display Level="None" AcceptEULA="TRUE" />
  <Property Name="AUTOACTIVATE" Value="1" />
  <Property Name="FORCEAPPSHUTDOWN" Value="TRUE" />
</Configuration>

Create the folder structure

This is optional and just an illustration of how I do it. I have a complete folder structure in my source file library equal to something similar to this:

8431.2107 and 8730.2127 are build numbers and is respectively version 1708 and 1711. Complete list of all the builds numbers and release dates for Monthly and Semi-Annual channel, look here!

Inside each build number, I have the Powershell Deployment Toolkit:

Inside the Files folder, I put my newly created Update.xml along side the Setup.exe from the ODT and a Update.bat file (which is what we will have the PS Deployment Toolkit running) containing following:

@echo off
“%~dp0setup.exe” /configure “%~dp0Update.xml”

I’m using a batch file to wrap the installation into, for the diversity and simplicity. If needed I can quickly edit the batch file, update DPs and move on (opposed to edit the PowerShell script)

Roll-back and downgrade

If needed, you can have the ODT (Setup.exe) to downgrade the version of Office 365 ProPlus as well. This is also done configuring the proper settings in an .xml file.

Below is my .xml file used to downgrade Office 365 ProPlus. Notice ForceDowngrade=”True” which is required if you are moving backwards (a SaaS like this, is meant to move forward 🙂 Again, take a look at this page for knowledge about the different versions/builds for your channel: here!

<Configuration>
  <Add OfficeClientEdition="32" Version="16.0.8431.2107" OfficeMgmtCOM="True" ForceDowngrade="True">
    <Product ID="O365ProPlusRetail">
      <Language ID="en-us" />
      <ExcludeApp ID="Groove" />
      <ExcludeApp ID="InfoPath" />
      <ExcludeApp ID="Publisher" />
      <ExcludeApp ID="SharePointDesigner" />
    </Product>
  </Add>
  <Logging Level="Standard" Path="C:\Windows\Temp" />
  <Display Level="None" AcceptEULA="TRUE" />
  <Property Name="AUTOACTIVATE" Value="1" />
  <Property Name="FORCEAPPSHUTDOWN" Value="TRUE" />
</Configuration>

This I wrap into a Downgrade.bat as well inside the Files folder of the Powershell Deployment Toolkit. (In a separate folder. For a separate package in ConfigMgr.)

@echo off
“%~dp0setup.exe” /configure “%~dp0Downgrade.xml”

The above configurations is made to actually download the differences in bits directly from the Office CDN. This is also something to consider if using this method. However, you can specify SourcePath=”” to let the installation grab the bits from a local source if desired. Microsoft has specified the download sizes in this post here!

<Add OfficeClientEdition="32" OfficeMgmtCOM="True" SourcePath="\\Server\Share\Monthly Channel" >

Deployment

With all of above in place, you will be ready for deployment with ConfigMgr. Note that I assume that you know your way around the Powershell Deployment Toolkit.

To target the update of Office to the proper computers, I use collections. ConfigMgr is able to inventory a lot of useful information regarding the Office 365 ProPlus client which includes the current version, channel etc:

This query example will give you all computers that: Has Office 365 ProPlus installed, runs on Current Channel set through GPO and is NOT already on the latest 1711 build. (This should probably be altered to fit your needs and environment, depending on various factors)

select SMS_R_SYSTEM.ResourceID,SMS_R_SYSTEM.ResourceType,SMS_R_SYSTEM.Name,SMS_R_SYSTEM.SMSUniqueIdentifier,SMS_R_SYSTEM.ResourceDomainORWorkgroup,SMS_R_SYSTEM.Client from SMS_R_System inner join SMS_G_System_ADD_REMOVE_PROGRAMS_64 on SMS_G_System_ADD_REMOVE_PROGRAMS_64.ResourceID = SMS_R_System.ResourceId inner join SMS_G_System_OFFICE365PROPLUSCONFIGURATIONS on SMS_G_System_OFFICE365PROPLUSCONFIGURATIONS.ResourceID = SMS_R_System.ResourceId where SMS_G_System_ADD_REMOVE_PROGRAMS_64.DisplayName like "Microsoft Office 365 ProPlus%" and SMS_G_System_OFFICE365PROPLUSCONFIGURATIONS.GPOChannel = "Current" and SMS_R_System.NetbiosName not in (select SMS_R_System.NetbiosName from  SMS_R_System inner join SMS_G_System_OFFICE365PROPLUSCONFIGURATIONS on SMS_G_System_OFFICE365PROPLUSCONFIGURATIONS.ResourceID = SMS_R_System.ResourceId where SMS_G_System_OFFICE365PROPLUSCONFIGURATIONS.VersionToReport = "16.0.8730.2127")

With this in place, you will have isolated the computers in need of being a target for your Office 365 ProPlus update.

Finally

Now there’s only a few steps left, but I assume you already know how to:

• Customize your Powershell Deployment Toolkit to your needs
  • Close the Office apps, and keep them closed (prevent users from starting any, until the installation is done)
  • Keep the user notified during the entire process through custom dialogs
  • Show a friendly restart dialog, prompting the user to restart within allotted time
• Create a package in ConfigMgr, distribute to your favorite DPs
• Test the deployment
• Deploy to your users
• Be happy about the process being a lot smoother in regards to user friendliness.

GIF of everything in action: Installation running, user trying to open Word and the dialogs that follow.

Introduction

Coming Patch Tuesday this month, Microsoft revealed a whooping vulnerability in some infineon TPM chips; ADV170012

In the above article, Microsoft gives us some insight on the vulnerability itself, as well as how to detect and counter the vulnerability.

As how to detect the vulnerability, they released a patch which writes an entry to the event log and highlights the vulnerability in TPM.msc.

They also released a Powershell script, which they in turn – unfortunately – don’t go into much details about. They tells us to use PSremoting to query multiple computers and nothing else.

So, how about using ConfigMgr to detect whether our computers are vulnerable or not? Compliance Settings to the rescue!

I rewrote their script to instead return $true or $false, and make it usable to detect compliance or non-compliance.

So, following is my edition of the script, and how to setup the CI in ConfigMgr

Configuration

<#

.DESCRIPTION
    Detect if Infineon TPM is vulnerable to Microsoft ADV170012 through Compliance Settings in ConfigMgr

.NOTES
    FileName:    CIDetectTPM.ps1
    Author:      Martin Bengtsson
    Created:     14-10-2017

#>

$IfxManufacturerIdInt = 0x49465800 # 'IFX'

		function IsInfineonFirmwareVersionAffected ($FirmwareVersion)
		{
			$FirmwareMajor = $FirmwareVersion[0]
			$FirmwareMinor = $FirmwareVersion[1]
			switch ($FirmwareMajor)
			{
				4 { return $FirmwareMinor -le 33 -or ($FirmwareMinor -ge 40 -and $FirmwareMinor -le 42) }
				5 { return $FirmwareMinor -le 61 }
				6 { return $FirmwareMinor -le 42 }
				7 { return $FirmwareMinor -le 61 }
				133 { return $FirmwareMinor -le 32 }
				default { return $False }
			}
		}

		function IsInfineonFirmwareVersionSusceptible ($FirmwareMajor)
		{
			switch ($FirmwareMajor)
			{
				4 { return $True }
				5 { return $True }
				6 { return $True }
				7 { return $True }
				133 { return $True }
				default { return $False }
			}
		}

		$Tpm = Get-Tpm
		$ManufacturerIdInt = $Tpm.ManufacturerId
		$FirmwareVersion = $Tpm.ManufacturerVersion -split "\."

		if (!$Tpm)
		{
			#No TPM found on this system, so the issue does not apply here."
            Return $True
		}
		else
		{
			if ($ManufacturerIdInt -ne $IfxManufacturerIdInt)
			{
				#This non-Infineon TPM is not affected by the issue."
                Return $True
			}
			else
			{
				if ($FirmwareVersion.Length -lt 2)
				{
					#Could not get TPM firmware version from this TPM."
                    Return $True
				}
				else
				{
					if (IsInfineonFirmwareVersionSusceptible($FirmwareVersion[0]))
					{
						if (IsInfineonFirmwareVersionAffected($FirmwareVersion))
						{
							#This Infineon firmware version {0}.{1} TPM is not safe. Please update your firmware." -f [int]$FirmwareVersion[0], [int]$FirmwareVersion[1])
                            Return $False
						}
						else
						{
							#This Infineon firmware version {0}.{1} TPM is safe." -f [int]$FirmwareVersion[0], [int]$FirmwareVersion[1])
                            Return $True
						}
					}
					else
					{
						#This Infineon firmware version {0}.{1} TPM is safe." -f [int]$FirmwareVersion[0], [int]$FirmwareVersion[1])
                        Return $True
					}
				}
			}
		}

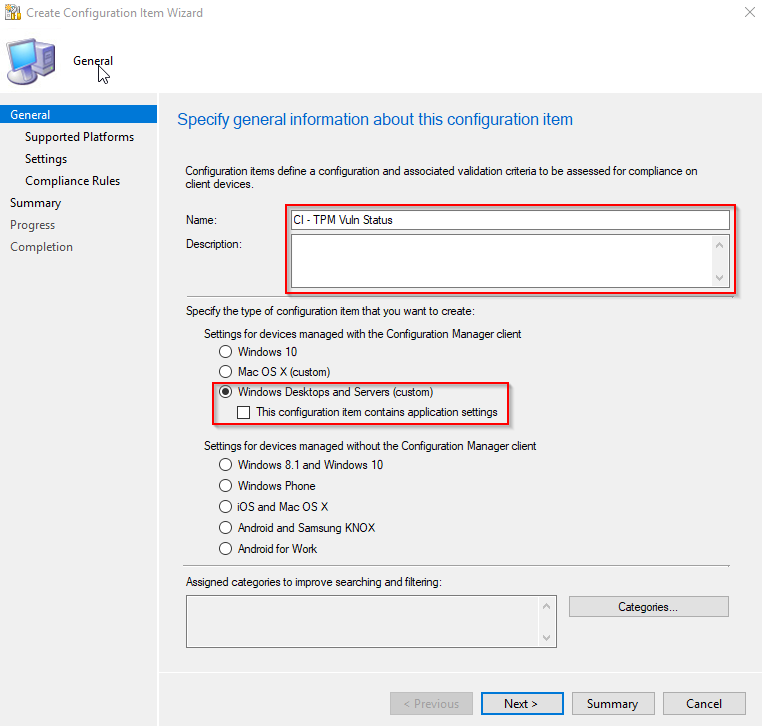

• Create a new CI. Give it a name and enable it to run on all Windows Desktops and Servers (Custom)

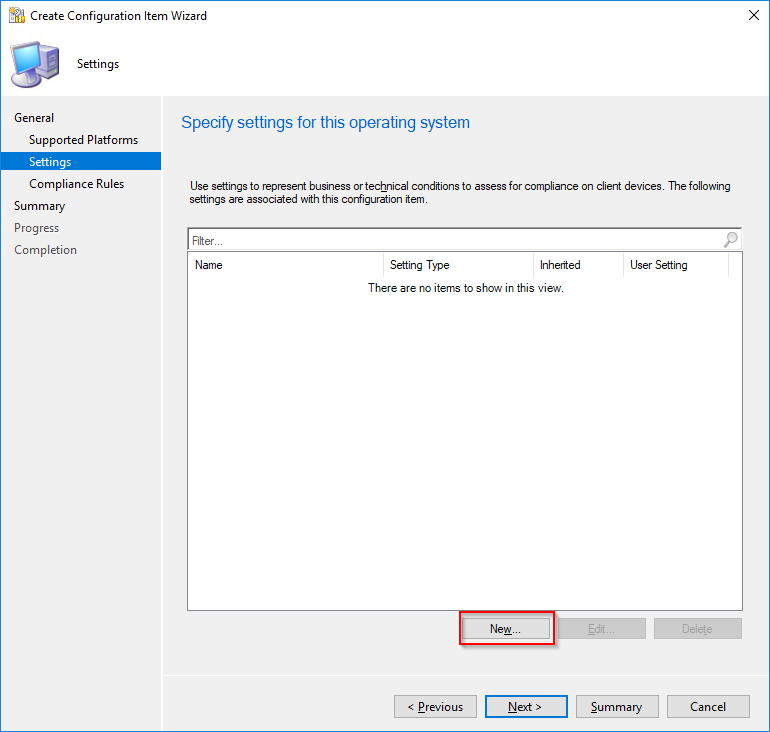

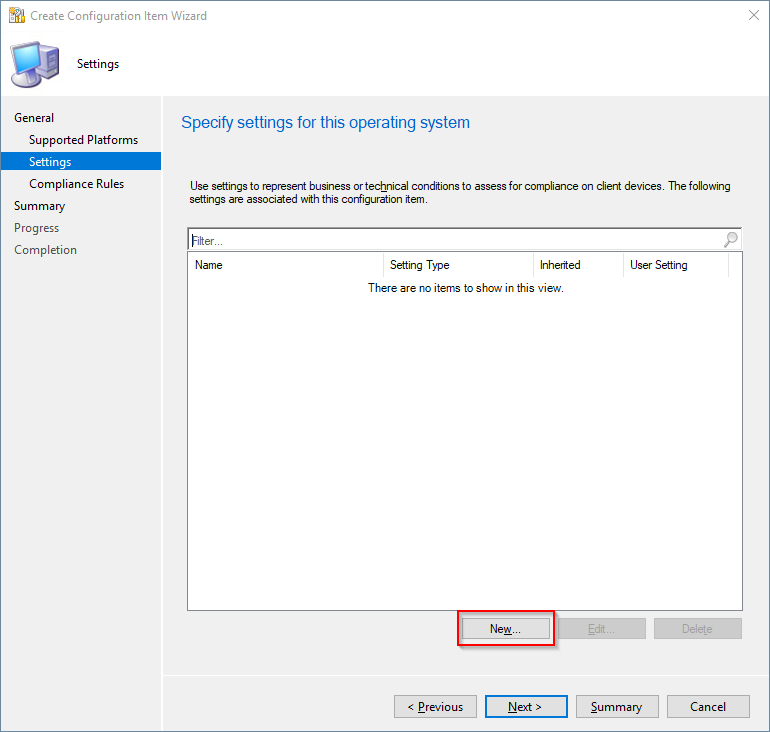

• At the Specify settings for this OS page, click New

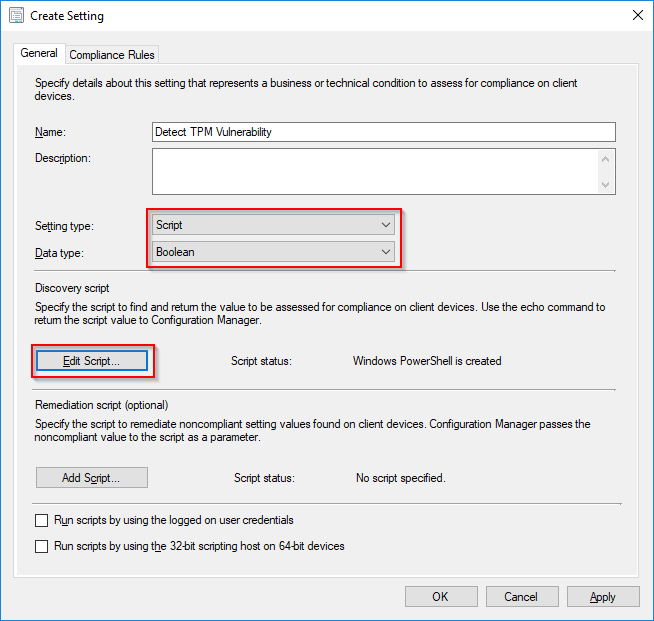

• In the Create Setting page, select Script and Boolean. Insert my script from above in Edit Script

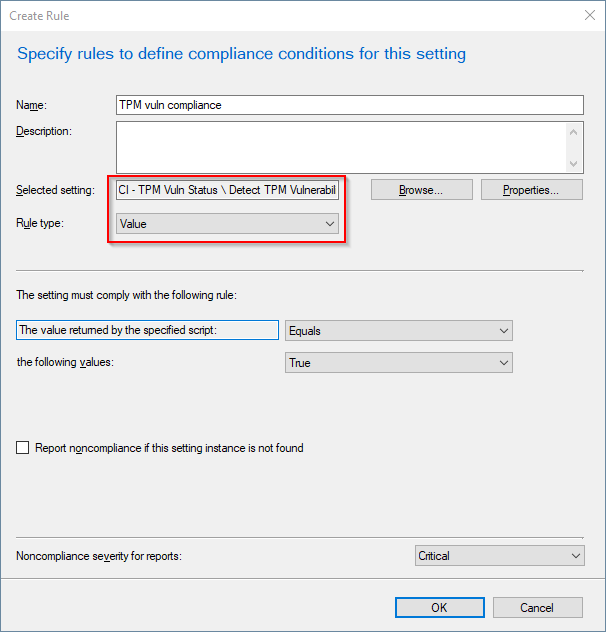

• In the Create Rule page, select the newly created CI

• Add the completed Configuration Item to a Configuration Baseline and deploy to selected collections

Summary

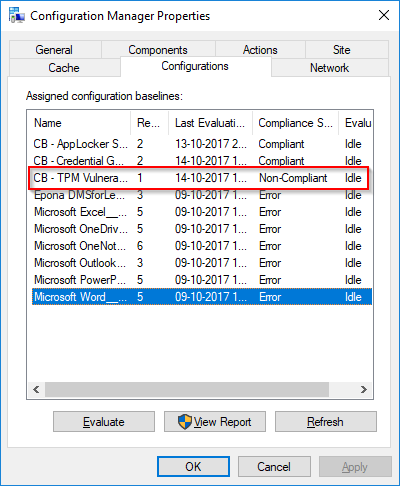

• Taking a closer look directly on the client on the Configurations tab of the ConfigMgr client, you will either notice a compliant or non-compliant state

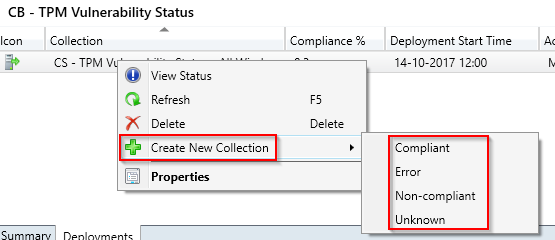

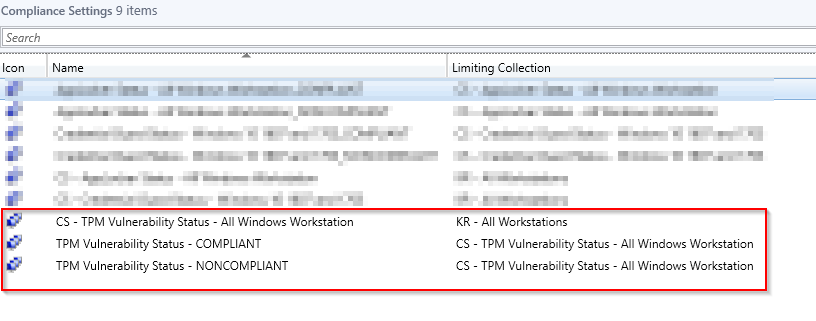

• For a better summary of compliance, I personally like to create collections. Go to the deployment of the Configuration Baseline, and right click. Below is your options to create additional collections

• The net result is a set of collections which memberships clearly tells the compliance state of the TPM vulnerability

Download my CI and baseline here: https://www.imab.dk/mab/CB_TPMVulnerability_Status.zip

Enjoy 😎



Introduction

Following is a post on how I let (some) of our users decide whether they want to roll on the Current Channel (now called Monthly) or the Deferral Channel (Now called Semi-Annual and Broad) for Office 365 ProPlus.

According to numerous blogs on the www, there are several ways of doing this; modifying registry, GPO, reinstalling Office or to rerun setup.exe from the Office Deployment Tool (ODT).

I’ve chosen to go with the last option, and modify the channel through setup.exe coming from ODT. (I spent some time on GPO and modifying the registry without the expected results. However using setup.exe gives you visibility and a method that yields the results right away)

Configuration

• Go ahead and download Microsoft Deployment Tool (ODT) if you haven’t already. Link: Download Office 2016 Deployment Tool
• Create two new .xml files containing following content (one for each channel switch)

Semi-Annual channel (also called Deferred or broad):

<Configuration>

	<Updates Channel="Deferred" />

</Configuration>

Monthly channel (also called current):

<Configuration>

	<Updates Channel="Monthly" />

</Configuration>

• Put the .xml files in folder next to setup.exe from the Microsoft Deployment Tool (ODT)
• Create two .bat files containing following content (one for each channel switch)
  • I’m deleting the current regkeys responsible for setting the channel prior to making the actual switch. This is due to some weirdness I’ve been seeing where the values are not properly updated.

SetDeferred.bat:

@echo off
reg delete HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Office\ClickToRun\Configuration /v CDNBaseUrl /f
reg delete HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Office\ClickToRun\Configuration /v UpdateChannel /f
"%~dp0setup.exe" /configure "Deferred.xml"
"%CommonProgramFiles%\microsoft shared\ClickToRun\OfficeC2RClient.exe" /update user

SetMonthly.bat:

@echo off
reg delete HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Office\ClickToRun\Configuration /v CDNBaseUrl /f
reg delete HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Office\ClickToRun\Configuration /v UpdateChannel /f
"%~dp0setup.exe" /configure "Monthly.xml"
"%CommonProgramFiles%\microsoft shared\ClickToRun\OfficeC2RClient.exe" /update user

• Put the two .bat files into the same folder and copy the content to your content library used in ConfigMgr (Whereever that may be. This is pretty standard, so I’m not going into details here)

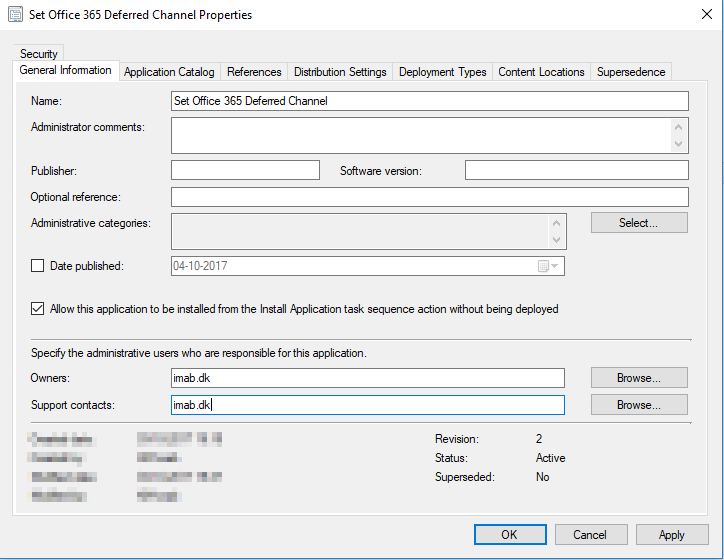

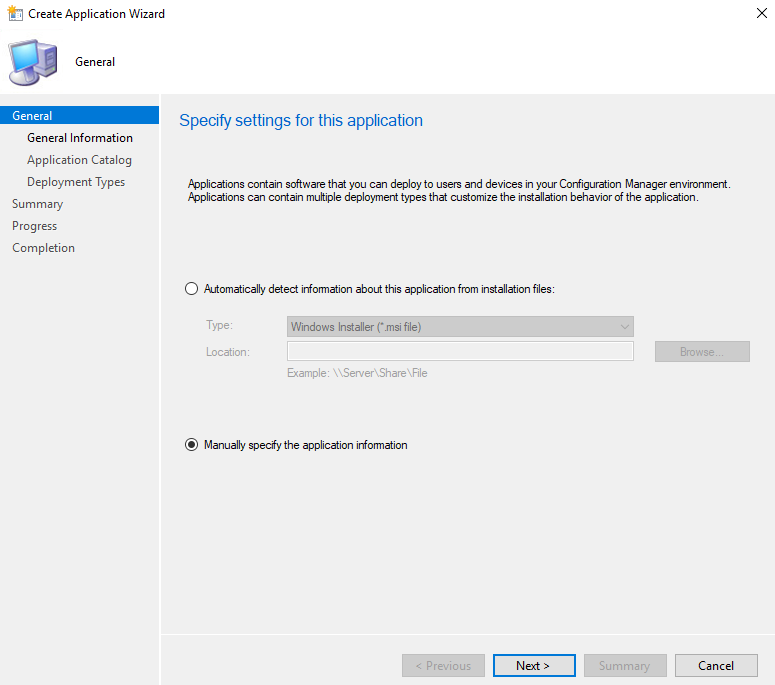

• Create two new Applications in ConfigMgr with a Deployment Type set to Script Installer. Below the snippets from the Create New Application process.

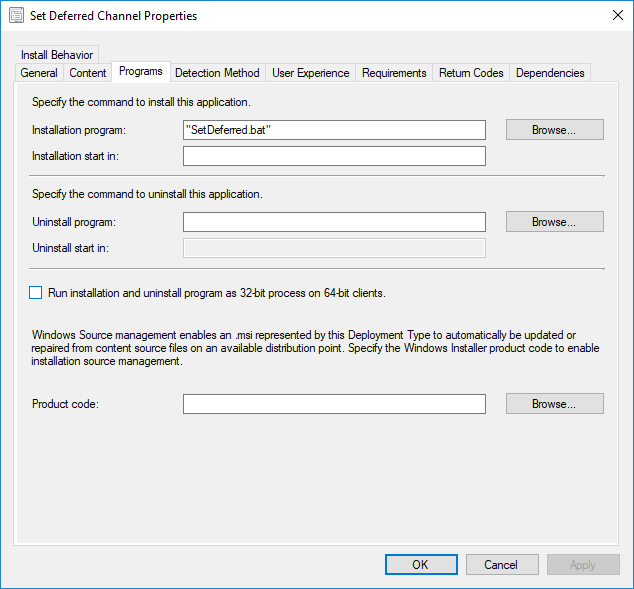

• Set the previously created .bat files as the installation program (SetDeferred.bat)

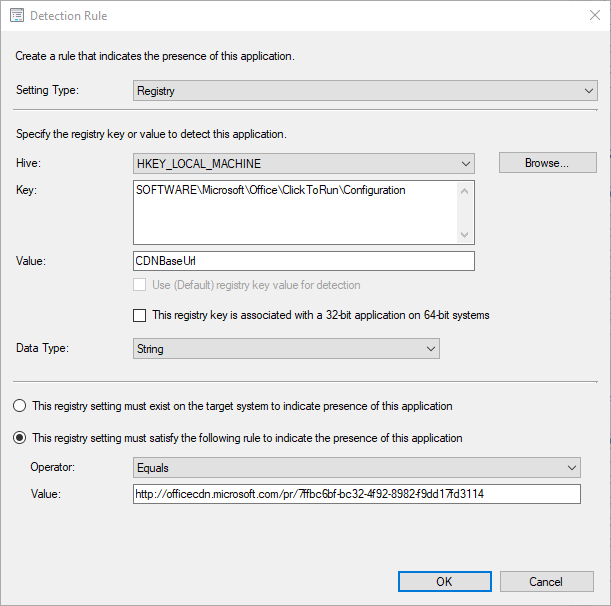

• Detection rules for the applications will be the corresponding registry keys. The value of the below registry key is changing upon switching channels.

Monthly Channel: http://officecdn.microsoft.com/pr/492350f6-3a01-4f97-b9c0-c7c6ddf67d60

Deferred Channel: http://officecdn.microsoft.com/pr/7ffbc6bf-bc32-4f92-8982-f9dd17fd3114

• Distribute the content of the newly created applications to your preferred distribution points (groups), and deploy the applications.

Summary

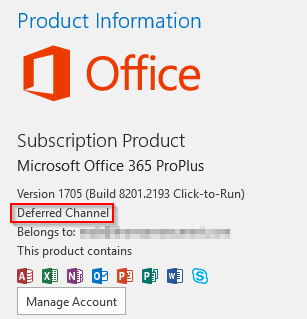

Running the applications will result in either an upgrade or downgrade of Office 365 ProPlus.  This should be followed by a series of windows which will take you through the process for the new channel that you have switched to.

This is something I have deployed internally in the IT department, enabling them to easily switch between the channels.

Enjoy! 😎

References:

https://support.microsoft.com/en-us/help/3185078/how-to-switch-from-deferred-channel-to-current-channel-for-the-office
https://blogs.technet.microsoft.com/odsupport/2017/05/10/how-to-switch-channels-for-office-2016-proplus/

I just had a very specific scenario, requiring me to target all new mobile devices (post a specific date) with a different set of compliance settings, than the rest of the devices.

In that case you can separate newly created devices in their own collection, based off their creation date.

The time of when a device is created is stored in the database, and the data can be queried through WMI using WQL.

A date formatted in WMI is using following syntax: yyyymmddHHMMSS.xxxxxx±UUU and can look like this:

20170819071629.492270+120

So, if you want all devices created post July 1 2017, your query have to look like this:

The syntax for dates in WMI in details: https://technet.microsoft.com/en-us/library/ee198928.aspx?f=255&MSPPError=-2147217396
